SUPERCOLOR ID-TAG

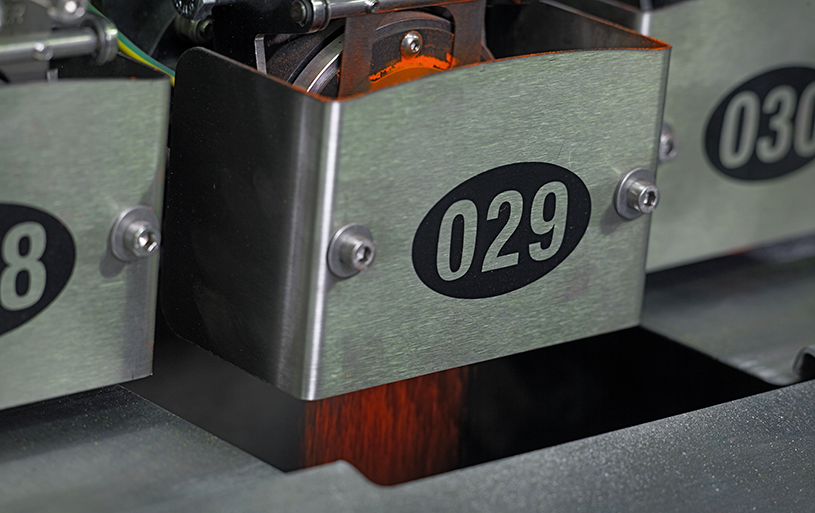

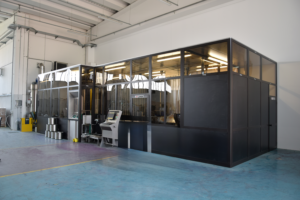

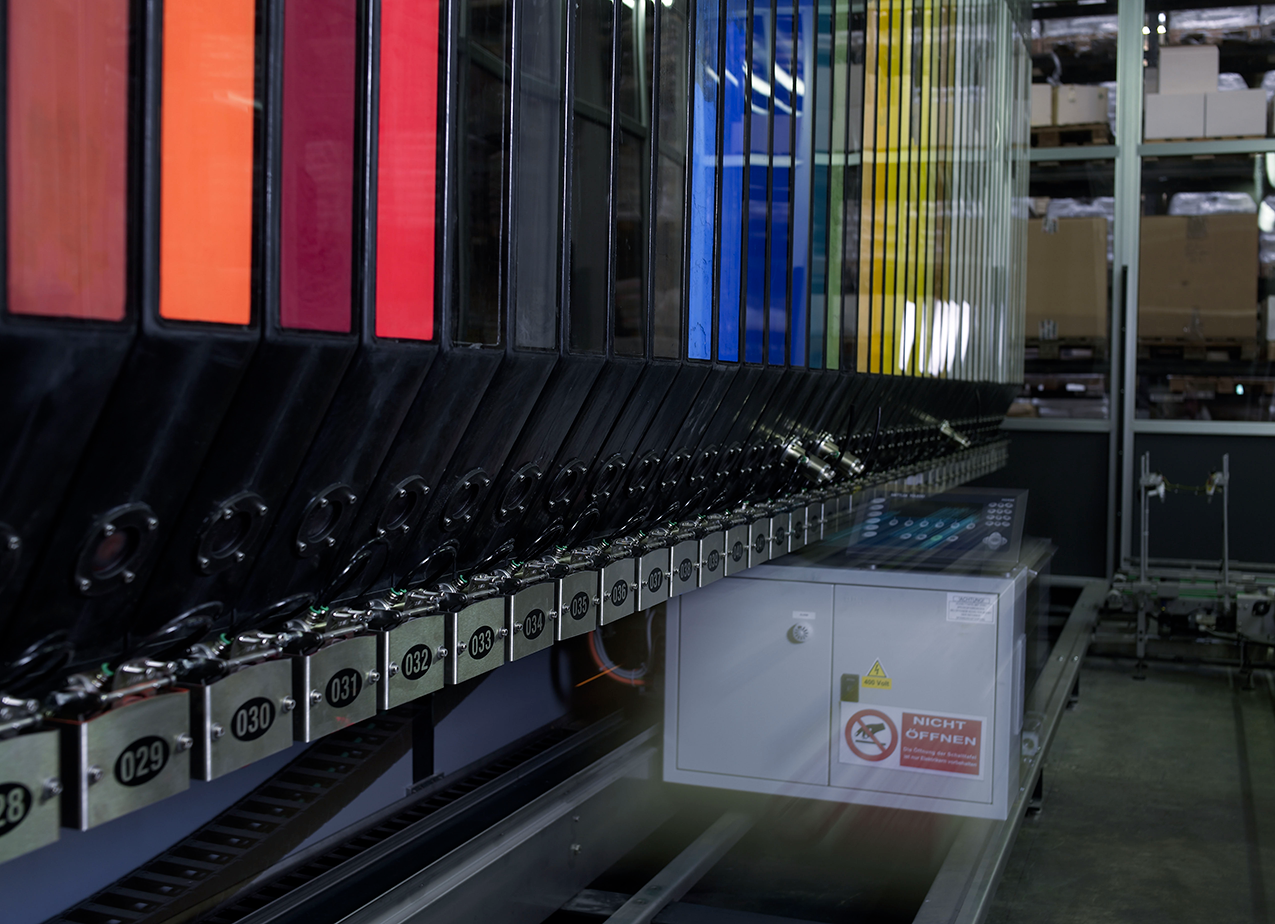

Supercolor is a fully automatic weighing system, allowing safe and clean powder recipes preparation. The system consists of a number of independent storage silos, installed in line on a modular structure. A weighing trolley incorporating the electronic scale is automatically transported to the correct silo position. Each module can accommodate up to 1O standard silos 150 L capacity or 5 double silos 300 L capacity. The silos are loaded by means of a vacuum system. The bottom section of each silo is equipped with an efficient combined screw / vibration dispensing device [Lawer patented], which allows to dispense rapidly and accurately the powder. The bucket loading / unloading takes place automatically and every bucket is identified by the ID-TAG system. At the end of each weighing cycle the data of the recipe are printed in an identification label. The system is protected by a full enclosure box, designed to connect to an external conditioning system, which ensures complete isolation of the plant, granting the ideal working conditions even in harsh environments [high humidity rate, abrupt thermal changes, air draughts, dusty ambient] and grants a safe use in case of toxic powders. An efficient suction / filtering device guarantees the maximum safety of use and a clean working environment. The system operates by means of a dedicated Lawer Software.
