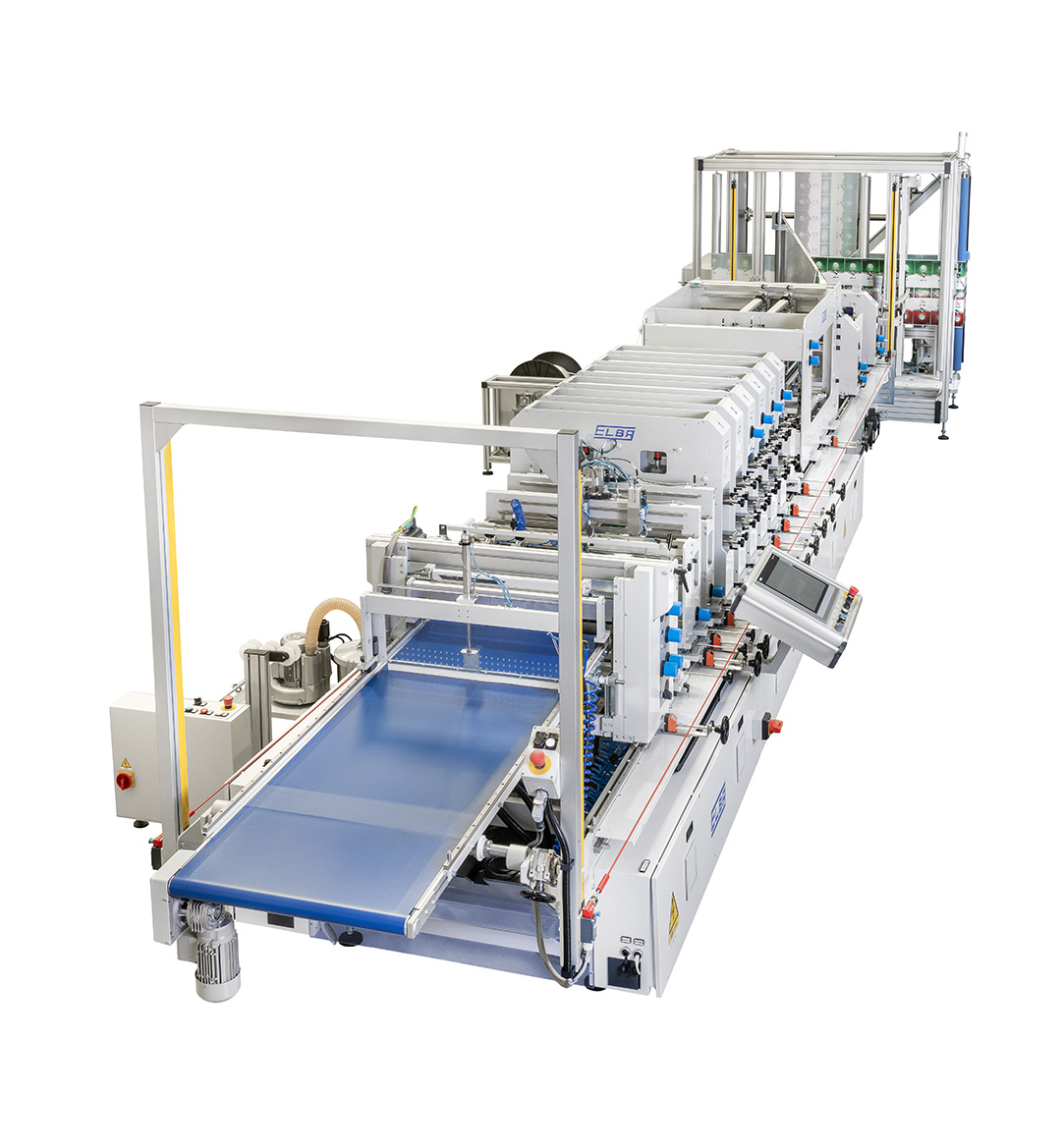

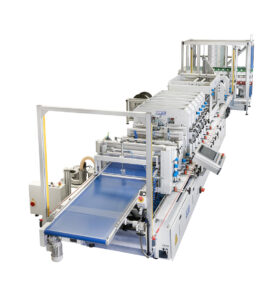

SA-V High-speed pouch making machine

The SA-V high-speed pouch making machine has been designed and engineered to be flexible, technologically advanced, easy to use and capable of producing a wide range of high-quality products.
It is fully equipped with Siemens components and is entirely controlled by a state-of-the art HMI based on Bus Profinet®, which offers decisive advantages in terms of:
• flexibility: it allows the manufacturing of fully customized machines
• efficiency: thanks to the total integration of all components and accessories
• performance: it leads to increased productivity with ease
• safety: it ensures the highest visibility of the remotely connected components during the assistance phase
Thanks to the high-quality components and the ease of use for the final user, the SA-V machine is characterized by reduced set-up/start-up/maintenance times and a shortened payback period.
As each station is independent, servo driven and installed on a modular base, the SA-V design allows the machine to be customized, according to different production requirements; the machine configuration can be upgraded at any time,
to face new unpredictable market demands.
The SA-V is offered in four different useful sealing widths: 620 mm (24.4”), 920 mm (36.2”), 1220 mm (48”) and 1620 mm (63.7”). The following products can be manufactured (according to the chosen configuration):
• 2-side seal pouches, single or double independent lanes, with or without zipper
• 3-side seal pouches, from one or more reels, single or multiple lanes, with or without zipper
• Stand-up/Doypack® pouches with folded bottom, from a single reel, single or double lanes, with or without zipper
• Stand-up/Doypack® pouches with folded bottom, from two independent reels, two independent lanes, with or without zipper
• Stand-up/Doypack® pouches with inserted bottom, single or multiple lanes, with or without zipper
• 4/5-side seal pouches
• Pouches with side gussets, inserted and non-inserted, front zipper, and pinch bottom
• Center seal pouches
The SA-V can process a wide range of laminated materials and recyclable mono-material PE and PP films, both printed and unprinted. Pouch sealing is performed in multiple stages to avoid material stress, ensuring the highest levels
of quality and seal strength.
To meet the requirements of different industrial sectors, a wide range of accessories is available, including valve applicators, sliders and zippers, various types of punching systems, laser scoring, and much more.
